Alloy Lap Joint Flanges with Stub Ends: Flexible & Cost-EffectiveCLASS300 ASME B16.5

Alloy Lap Joint Flanges with Stub Ends: Flexible & Cost-Effective Alignment for Special Alloy Systems

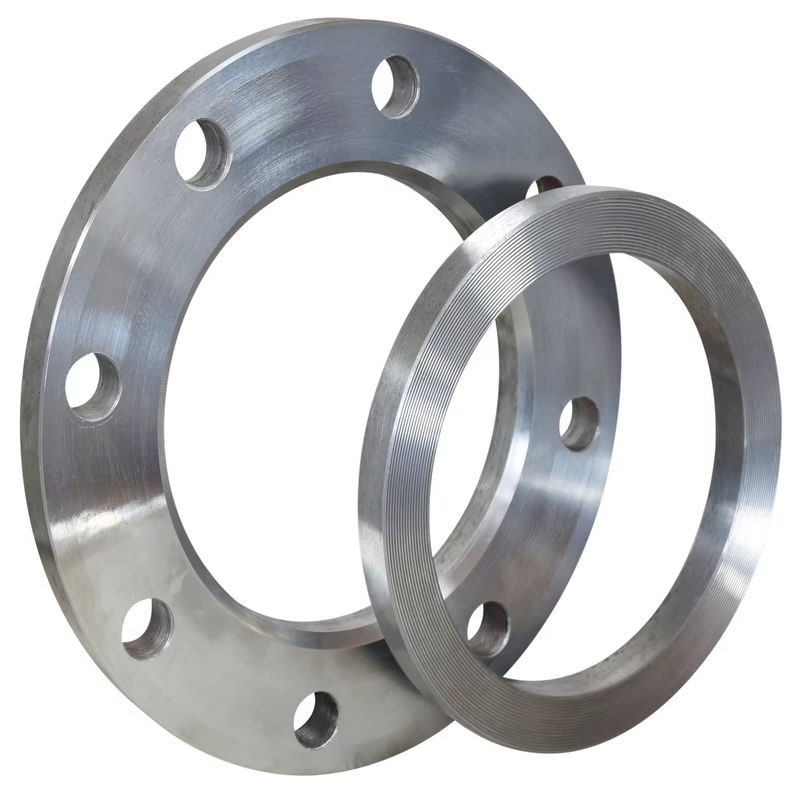

The Alloy Steel Lap Joint Flange system consists of two parts: a stub end (made of a matching or superior alloy) and a backing flange (which can be made from a less expensive carbon steel). The flange rotates freely around the stub end, enabling perfect bolt hole alignment and simplifying installation, especially in systems with limited space or requiring frequent disassembly. This design is highly economical for costly corrosion-resistant alloys.

Product Description:
The backing flange is a flat ring with a raised face and a low hub with a rounded bore to accommodate the stub end. It is not welded to the pipe. The stub end, which has a lap to match the flange face, is butt-welded to the pipe. The two components are assembled together before bolting to the mating flange.

Key Parameters:
The stub end and flange conform to ASME B16.9 and B16.5 standards, respectively, for dimensions. Available in all pressure classes (Class 150 to Class 1500) and sizes. The stub end material is typically a high-grade alloy (e.g., ASTM A403 WP316), while the backing flange can be carbon steel (ASTM A105).

Applications:
Ideal for expensive alloy (e.g., stainless steel, duplex, nickel alloys) or lined piping systems, as only the stub end needs to be of the special material. Perfect for systems requiring frequent dismantling for cleaning or inspection, such as food processing, pharmaceutical, and pulp & paper industries. Also used in cramped spaces where rotating the entire pipe assembly is difficult.

Advantages:
Significant cost savings by using a carbon steel backing flange with an alloy stub end. Eliminates issues with bolt hole alignment during final assembly, as the flange can be rotated freely. Reduces friction and wear on flange faces during bolt-up. Simplifies maintenance and inspection.

Functionality:
Provides a flanged connection where the sealing surface is created by the lapped stub end, while the backing flange provides the structural strength for bolting. This allows the pipe system to be easily aligned and disassembled without disturbing the welded joint between the stub end and the pipe.
